Griamond 430 for Harness Products

The Griamond Series is BioThane Coated Webbing's response to numerous customer requests for a “harder” version of our Granite coating. Griamond integrates the hardness of Diamond with the matte finish of Granite. Any item from our Granite class is available in Griamond. See our colors and profiles for Griamond options.

Great for: Hame Straps Shaft Loops Breast Pole Straps Traces/Tugs Various Harness Straps Bridles Belly Bands

Color Options

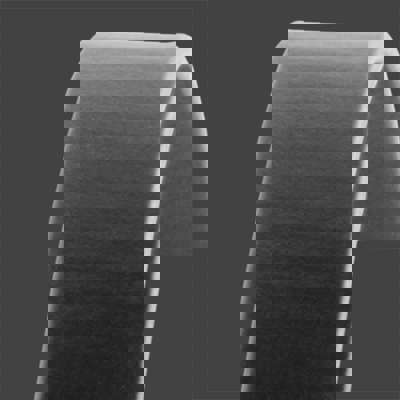

BL431 Griamond Black 431 - BL431
Griamond Black 431 - BL431
*All colors shown are digital representations and may vary from actual coating color.

Width and Profile Options

Width Profile Thickness Break Strength (* See footnote below) Buckle Pull Strength (** See footnote below)
1/2" (12.7 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
5/8" (15.875 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
3/4" (19.05 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
1" (25.4 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
1 1/8" (28.575 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
1 1/4" (31.75 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
1 1/4" (31.75 mm) profile cross section
B30 Super Thick
.175" - .195"
4.45mm - 4.95mm
3000lbs (1360.777kg) 700lbs (317.515kg)
1 1/2" (38.1 mm) profile cross section
B10 Grooved
.095" - .105"
2.41mm - 2.67mm
1000lbs (453.592kg) 200lbs (90.719kg)
1 1/2" (38.1 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
1 1/2" (38.1 mm) profile cross section
B30 Super Thick
.175" - .195"
4.45mm - 4.95mm
3000lbs (1360.777kg) 700lbs (317.515kg)
2" (50.8 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
2 1/2" (63.5 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
3" (76.2 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
* Break strength value is per inch of width. Example 2″ (50.8mm) is 2000lbs (907.1847kg) or 3/4″ (19.05mm) is 750lbs (340.194kg).
** All Buckle Pull Strength values are based on a 1″ wide specimen.
