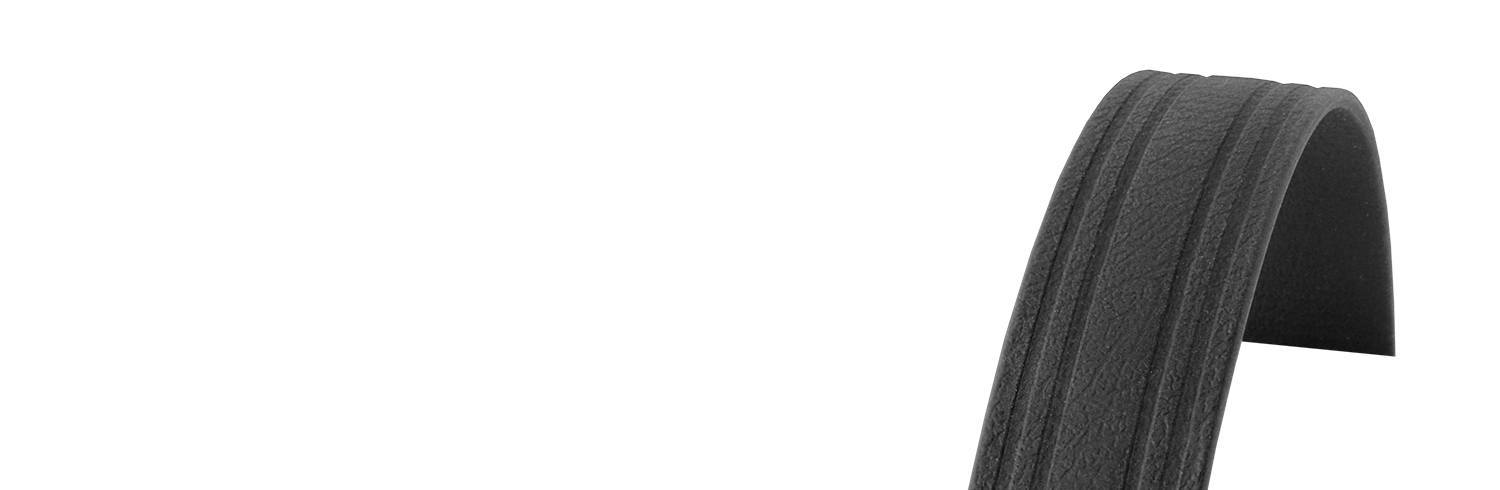

Granite 230 for Harness Products

The Granite 230 Series, popular for its rich matte surface, is designed for heavy-duty jobs.

Great for: Bridles Belly Bands Breast Collars Various Harness Straps

Color Options

BL231 Granite Black 231 - BL231
Granite Black 231 - BL231

*All colors shown are digital representations and may vary from actual coating color.

Width and Profile Options

Width Profile Thickness Break Strength (* See footnote below) Buckle Pull Strength (** See footnote below)
1/2" (12.7 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
5/8" (15.875 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
3/4" (19.05 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
1" (25.4 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
1 1/8" (28.575 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
1 1/2" (38.1 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
2" (50.8 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
2 1/2" (63.5 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
3" (76.2 mm) profile cross section
B10 Ex Thick Grooved
.125" - .135"
3.17mm - 3.43mm
1000lbs (453.592kg) 200lbs (90.719kg)
* Break strength value is per inch of width. Example 2″ (50.8mm) is 2000lbs (907.1847kg) or 3/4″ (19.05mm) is 750lbs (340.194kg).
** All Buckle Pull Strength values are based on a 1″ wide specimen.
