Beta 580 for Harness Products

Look: Leather-like semi-gloss coating. Feel: Soft to the hand, and supple. Availability: Order with grooves (S2) or in Super Heavy thickness and 1/2" to 1" widths. Great for Harness and Tack as well as Canine products.

Great for: Reins

Color Options

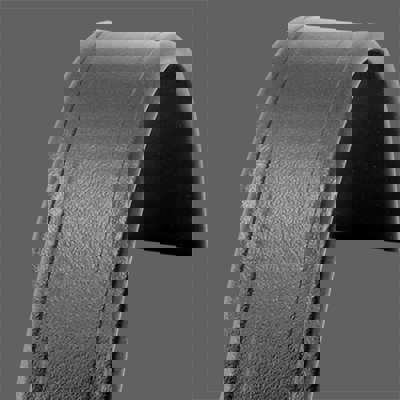

BL580 Beta Black 580 - BL580
Beta Black 580 - BL580

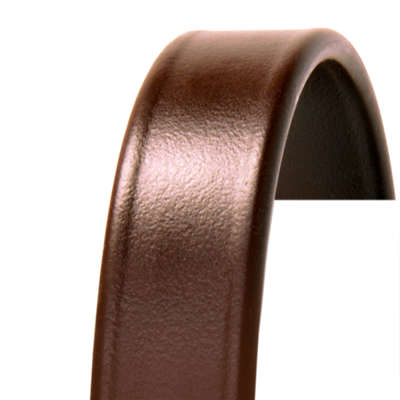

BR583 Beta Brown 583 - BR583
Beta Brown 583 - BR583

*All colors shown are digital representations and may vary from actual coating color.

Width and Profile Options

Width Profile Thickness Break Strength (* See footnote below) Buckle Pull Strength (** See footnote below)
1/2" (12.7 mm) profile cross section
B10 Super Heavy
.140" - .160"
3.56mm - 4.06mm
1000lbs (453.592kg) 200lbs (90.719kg)
1/2" (12.7 mm) profile cross section
B10 Super Heavy Grooved
.140" - .160"
3.56mm - 4.06mm
1000lbs (453.592kg) 200lbs (90.719kg)
5/8" (15.875 mm) profile cross section
B10 Super Heavy
.140" - .160"
3.56mm - 4.06mm
1000lbs (453.592kg) 200lbs (90.719kg)
5/8" (15.875 mm) profile cross section
B10 Super Heavy Grooved
.140" - .160"
3.56mm - 4.06mm
1000lbs (453.592kg) 200lbs (90.719kg)
3/4" (19.05 mm) profile cross section
B10 Super Heavy
.140" - .160"
3.56mm - 4.06mm
1000lbs (453.592kg) 200lbs (90.719kg)
3/4" (19.05 mm) profile cross section
B10 Super Heavy Grooved
.140" - .160"
3.56mm - 4.06mm
1000lbs (453.592kg) 200lbs (90.719kg)
7/8" (22.225 mm) profile cross section
B10 Super Heavy
.140" - .160"
3.56mm - 4.06mm
1000lbs (453.592kg) 200lbs (90.719kg)
7/8" (22.225 mm) profile cross section
B10 Super Heavy Grooved
.140" - .160"
3.56mm - 4.06mm
1000lbs (453.592kg) 200lbs (90.719kg)
1" (25.4 mm) profile cross section
B30 Super Heavy
.140" - .160"
3.56mm - 4.06mm
1000lbs (453.592kg) 200lbs (90.719kg)
1" (25.4 mm) profile cross section
B10 Super Heavy Grooved
.140" - .160"
3.56mm - 4.06mm
1000lbs (453.592kg) 200lbs (90.719kg)
* Break strength value is per inch of width. Example 2″ (50.8mm) is 2000lbs (907.1847kg) or 3/4″ (19.05mm) is 750lbs (340.194kg).
** All Buckle Pull Strength values are based on a 1″ wide specimen.
